CR36DA

MULTI VOLT(36V) Cordless Reciprocating Saw CR36DA Electric (AC) Speed with Approx. 50% Less*1 Vibration The CR36DA reciprocating saw is designed with the twin counterweight system which ensures a significant vibration reduction, and provides the maximum cutting efficiency using orbital action. Less User Fatigue due to Minimum Pushing Force Required to Operate Wood Cutting Speeds without Pushing Force (self-weight only) Note: Always firmly grip the handle and front grip while operating. 2 x 10 SPF, No.132 blade, Max. Transmission Mode (CR36DA), Dial5 (CR13VBY) Wood Cutting Speeds with 49N (5kgf) Pushing Force 2 x 10 SPF, No.132 blade, Max. Transmission Mode (CR36DA), Dial5 (CR13VBY) Steel Cutting Speeds with 49N (5kgf) Pushing Force SGP40A (48.6mm OD x 3.5mm WT), No.141(S) blade, Medium Transmission Mode (CR36DA), Dial4 (CR13VBY) Vs. the CR18DBL cordless reciprocating saw. The value is shown for reference purposes and may vary according to the workpiece material and other operating conditions. This value is shown for reference purposes and may vary according to the workpiece material and other operating conditions. Runtime per Charge* with BSL36A18 battery Approx. 60 Cuts in Wood2 x 10 SPF, Orbital Action, Max. Mode, 49N (5kgf) Pushing Force   Approx. 50 Cuts in SteelSGP40A (48.6mm OD x 3.5mm WT), Straight Action, Medium Mode,49N (5kgf) Pushing Force   Values are shown for reference purposes and may vary according to the workpiece material and other operating conditions. HiKOKI Twin Counterweight System The upper and lower counterweight gears spin in the opposite directions to balance out inertia force, resulting in significant vibration reduction.    Vs. the CR18DBL cordless reciprocating saw. The value is shown for reference purposes and may vary according to the workpiece material and other operating conditions. Orbital Action The change lever switches between the straight mode and the orbital mode, maximizing the wood-cutting efficiency. Durable Cylindrical Housing The CR36DA is our first reciprocating saw with a cylindrical housing, providing a great improvement on durability. Four-mode Speed Control for a Wide Range of Applications Mode Low Medium High Max Mode Indicator SPM 0 – 1,700/min 0 – 2,000/min 0 – 2,500/min 0 – 3,000/min Applications Stainless SteelPlasticFiber Board Mild Steel PipesCast-iron TubesL-shaped Angle SteelAluminumBrass/Copper ALC (Autoclaved Lightweight Concrete)PlasterboardWood The actual SPM values may vary according to the working conditions. Tool-less Features Tool-less Blade Change   Blade installation and removal can be done by a simple push of a lever. Tool-less Shoe Adjustment The shoe (base) lever allows the shoe to be adjusted. Other Features Large Pivoting Hook LED Light Specifications Capacity Mild Steel Pipe 130mm (5″) Vinyl Chloride Pipe 130mm (5″) Wood 300mm (11-13/16″) Mild Steel Plate 19mm (3/4″) Battery Voltage 36V Length of Stroke 32mm (1-1/4″) No Load Speed 0-3,000/min Overall Length 457mm (17-63/64″) Weight 4.5kg (9.9lbs.) with BSL36A18 battery4.8kg (10.6lbs.) with BSL36B18 battery Standard Accessories* 2 Batteries (BSL36A18/BSL36B18), Charger (UC18YSL3), Blade (No.141(S)), Battery Cover, Carrying Case Standard Accessories vary by country or area. PDF :  1,869KB Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

CJ36DA

MULTI VOLT(36V) Cordless Jig Saws CJ36DA Specifications and others Specifications Leaflet(PDF) Best in class*1 cutting performance even superior to corded tools*2,3 As cordless tools Owing to a highly effcient brushless motor and high power MULTI VOLT battery, these products offer the performance. Cutting Speed Comparison (approx.)*2,3 MDF 24mm thick, blade No.41, orbital position Ⅲ, maximum speed, 20N of thrust force. SPCC 2mm thick, blade No.41, orbital positionⅠ, speed dial 3, 20N of thrust force. Cutting under Heavy Load Low vibration leads Smooth Cutting High thrust force enables Cutting under Heavy Load 2X12 SPF, blade No.41, orbital position Ⅲ, maximum speed, 30N of pushing force (excluding its own weight). As of October 2019. Among cordless jig saws made by leading power tool manufacturers. (Survey by Koki Holdings) Vs. the existing model CJ160V. Vs. the existing model CJ160VA. Auto Mode Low speed at startup makes it easy to align the blade to the cut line When the machine is under load, the speed is automatically switched from 1,400/min to 3,500/min. Selective 2-Mode Speed Mode Dial Speed (approx.) Standard Mode 1 – 5 800 – 3,500/min Auto Mode A No load: 1,400/min Under load: 3,500/min Tool-less Blade Change For allowing blade change without a tool. Can be connected to a dust extractor (Adapter sold separately) Constant Speed Control to maintain the speed Other features 4-Stage Orbital Operation On-lock Switch (CJ36DA) Variable Speed Control Blower Function Specifications Model CJ36DA CJ36DB Capacity Wood 160mm Mild Steel 10mm Stainless Steel 3.2mm Min. Cutting Radius 25mm Max Cutting Angle 45° Right/Left Voltage 36V Stroke 26mm No-Load Speed 800 – 3,500/min Overall Length 277mm 298mm Weight*1 2.7kg with BSL36A18 3.0kg with BSL36B18*2 2.7kg with BSL36A18 2.9kg with BSL36B18*2 Vibration Total Values*3(Triax Vector Sum) Cutting Boards Vibration emission value ah, B = 8.4m/s2 Uncertainty K = 1.5m/s2 Vibration emission value ah, B = 6.9m/s2 Uncertainty K = 1.5m/s2 Cutting Sheet Metal Vibration emission value ah, M = 4.5m/s2 Uncertainty K = 1.5m/s2 Vibration emission value ah, M = 4.8m/s2 Uncertainty K = 1.5m/s2 Standard Accessories*4 2 Batteries (BSL36A18), Charger (UC18YSL3), Blade, Splinter Guard, Chip Cover, Dust Collector(for Europe), 2 Battery Covers, Carrying Case Weight according to EPTA-Procedure 01/2014. Sold separately. The measured values were determined according to EN62841. Standard accessories vary by country or area. PDF :  1,085KB Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Instruction Manual Technical Service & Support Global Network Instruction Manual Technical Service & Support BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US Digital Catalog All Posts Digital li-ion Uncategorized   Back abc Digital Catalog

CG36DC

MULTI VOLT (36V) Cordless Grass Trimmer / Brush Cutter CG36DC Specifications and others Continuous Operating Time per Charge Specifications High Torque and Highly Durable With the high efficiency brushless motor which increases the power and performance, CG36DC delivers 1.6 times higher torque than the conventional model CG36DB. 3-mode Speed Control 3-mode speed control allows users to select the speed match the applications. Model APAC Model Power 6,000/min Auto 4,700/min Eco 3,000/min Auto Mode (For APAC model only) The Auto Mode which automatically increases rotation speed when the loads gets heavier. Spindle Lock Function The spindle lock can be locked by just pressing the lock button for easy and quick cutting attachment changing.   The image of Japan model is used for demonstration purpose. Easy-to-use and Easy-to-access Switch Panel The switch panel is conveniently located closed to the handle for ease of use. Ergonomic Design The motor is located at the rear for easy control and good maneuverability. Continuous Operating Time per Charge* Model Name Battery Continuous Operating Time per Charge Under No-load CG36DC BSL36B18X 4.0Ah(MULTI VOLT Battery) For APAC model Blade Eco: Approx. 160min Auto Mode: Approx. 80min Power: Approx. 50min Nylon Eco: Approx. 80min Auto Mode: Approx. 24min Power: Approx. 10min For EU model Blade Eco: Approx. 140min Normal Mode: Approx. 75min Power: Approx. 50min Nylon Eco: Approx. 50min Normal Mode: Approx. 20min The values are shown for reference purposes and may vary according to materials and conditions. Specifications Model CG36DC CG36DC(L) Battery Voltage 36V Type of Motor Brushless Type of Handle Bike Handle Loop Handle Cutting Capacity Dia. blade 255mm Nylon Head 440mm No Load Speed Power 6,000/min Auto*1 / Normal*2 4,700/min*1 5,000/min*2 Eco 3,000/min*1 3,500/min*2 Dimensions (L x W x H)*3 1,835 x 625 x 605mm 1,835 x 355 x 280mm Weight 5.4kg with BSL36B18X battery*1,4 5.8kg with BSL36B18X battery*2,4 5.2kg with BSL36B18X battery*1,4 5.2kg with BSL36B18X battery*2,4 Compatible Battery*5 MULTI VOLT battery Standard Accessories*6 ⌀255*3T blade, Nylon head, Cutter cover, Shoulder belt(Single), Shoulder belt(Double)*7, 7X19 combi box wrench, 4mm Hex. bar wrench, Pouch cloth, Guard with extension for nylon head For APAC model. For EU model. Including the battery BSL36B18X (sold separately), guard, and shoulder belt but excluding the cutting attachment. Including the battery BSL36B18X (sold separately), cutting attachment, guard, and shoulder belt. According to EPTA-Procedure 01/2014. AC/DC adapter (Model ET 36A) cannot be used. Existing batteries (BSL 3660/3626X/3626/3625/3620, BSL 18 and BSL 14 series) cannot be used with this tool. Standard accessories vary by country or area. For CG36DC EU model only. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Instruction Manual Technical Service & Support Global Network Instruction Manual Technical Service & Support BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US Digital Catalog All Posts Digital li-ion Uncategorized   Back abc Digital Catalog

CG36DB

MULTI VOLT(36V) Cordless Line Trimmer CG36DB Description Experience unmatched cutting performance with the 36V Cordless Line Trimmer CG36DB from HiKOKI. Tackle any trimming task effortlessly with its powerful motor, designed to deliver precise results every time.   The easy-grip handle ensures comfortable operation, reducing fatigue during extended use. Weighing in as a lightweight champion, this trimmer enables easy maneuverability, making those hard-to-reach spots a breeze.   The convenient trigger switch grants complete control, enhancing cutting precision and safety. Embrace the ergonomic loop handle, offering a natural grip for improved user experience. With its integrated brake mechanism, you can trust in swift stopping power.   Plus, revel in the serenity of quieter trimming sessions, thanks to its noise-reduction technology. Dominate your lawn maintenance with this cutting-edge cordless line trimmer. Product Features High cutting performance Easy grip handle Lightweight Trigger Switch Loop handle Brake mechanism Less noise Specifications Type of power  36V Type of motor Brushed Cutting capacity (diameter)  310mm Cutting tool Nylon head No load speed Power  6,500 (min-¹) Normal  5,500 (min-¹) Eco  4,000 (min-¹) Run Time per charge* Power 39 minutes Normal 70 minutes Eco 122 minutes Power indicator lamp  Red LED Weight  3.6kg Dimensions (L x W x H )  1,803 x 340 x 236mm *1: Time will vary depending on grass type, temperature, battery condition. This is a guide only. PDF :  200KB Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US Digital Catalog All Posts Digital li-ion Uncategorized   Back abc Digital Catalog

CB3612DA

MULTI VOLT(36V) Brushless 165mm Rail Saw C3606DUM Features Huge cutting capacity of 127x120mm for all standard materials   Variable speed control to adjust the rotation speed and control to the material and application   Fastest cutting speed in its class for fast working progress Auto Mode for automatic control of speed depending on the load for fast and efficient cutting progress   Toolless band exchange for fast and easy replacement of saw bands   Big hook for storing the tool in the working van or on the jobsite.   MULTI VOLT battery technology: AC power, DC freedom Specifications Band Saw Width 12,5 mm Band Saw Thickness 0,5 mm Band Saw Length 1 140 mm Band Saw Peripheral Speed (DC) 1 – 3,2 m/s Maximum Cutting Capacity Square Pipe 127 x 120 mm Battery Voltage (DC) 36V Motor Type Brushless Weight 7.5 kg Tool Length 500 mm Tool Width 139mm Tool Height 320mm CB3612DAW4ZBody onlyBand saw blade (Bi-Metal 18TPI)Hex. Bar wrenchGTIN 4966376410330 PDF :  196KB Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Instruction Manual Technical Service & Support Global Network Instruction Manual Technical Service & Support BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US Digital Catalog All Posts Digital li-ion Uncategorized   Back abc Digital Catalog

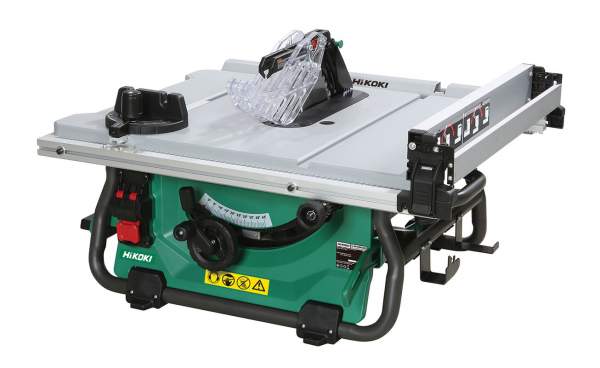

C3610DRJ

MULTI VOLT(36V) Cordless Table Saw C3610DRJ Features High efficiency brushless motor for reduced maintenance   Adjustable rip fence and saw table   Same cutting capacity as mains model   Can be powered by Multi Volt battery or ET36A mains adapter (not included)   Soft start for greater control   Electronic brake for enhanced safety Specifications Blade Diameter 254mm Cutting capacity 90 deg: 79mm | 45 deg: 57mm No-load speed 5000/min Rip fence extension length Right: 889mm | Left: 445mm Main Table Size 730 x 560mm Weight (ex battery) 29.5kg Standard accessories Push stick C3610DRJW4ZBody onlyHex key 2.5mm x 1, 4mm x 1Blade guard assemblyPush stickBlade wrench40T bladeCarton BoxGTIN 4966376334506 PDF :  542KB Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Instruction Manual Technical Service & Support Global Network Instruction Manual Technical Service & Support BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US Digital Catalog All Posts Digital li-ion Uncategorized   Back abc Digital Catalog

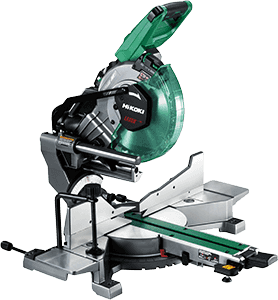

C3610DRA

MULTI VOLT(36V) Cordless Slide Compound Miter Saw C3610DRA Features Up to 375 cuts per charge in 2X4 SPF when using BSL36B18 battery*1 Accepts ET36A AC/DC Adapter for continuous operation Compact slide system Laser Marker: Guide system on cut line LED light * Do not stare into LASER beam. Specifications Blade Dia. 255mm (10″) Capacity(H x W) 0°(Right Angle) with anchor plate 89 x 292mm (3-1/2″ x 11-1/2″) without anchor plate 64 x 318mm (2-1/2″ x 12-1/2″) Miter Left/Right 45° with anchor plate 89 x 204mm (3-1/2″ x 8″) without anchor plate 64 x 222mm (2-1/2″ x 8-3/4″) Bevel Left 45° with anchor plate 45 x 292mm (1-3/4″ x 11-1/2″) without anchor plate 41 x 318mm (1-5/8″ x 12-1/2″) Bevel Right 45° with anchor plate 25 x 292mm (1″ x 11-1/2″) without anchor plate 19 x 318mm (3/4″ x 12-1/2″) Miter Left/Right 45° +Bevel Left 45° with anchor plate 45 x 204mm (1-3/4″ x 8″) without anchor plate 41 x 222mm (1-5/8″ x 8-3/4″) Miter Left/Right 45° +Bevel Right 45° with anchor plate 25 x 204mm (1″ x 8″) without anchor plate 19 x 222mm (3/4″ x 8-3/4″) Voltage 36V No Load Speed 4,000/min Miter Angle Right 0 – 60° Left 0 – 55° Bevel Angle Right 0 – 48° Left 0 – 48° Positive Miter Angle Stop 0, Right and Left 15°, 22.5°, 31.6°, 45° Dimensions 778 x 792 x 686mm (30-5/8″ x 31-3/16″ x 27″) Weight*2 20.6kg (45.5lbs.) with BSL36B18 Standard Accessories 2 Batteries (BSL36B18), Charger (UC18YSL3), Blade, Dust Bag, Vise Ass’y, Wrench, Battery Covers, Support Rod Ass’y, Screws The runtime is for reference purposes. It may vary according to the workpiece material and operating conditions. According to EPTA-Procedure 01/2014. Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Instruction Manual Technical Service & Support Global Network Instruction Manual Technical Service & Support BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US Digital Catalog All Posts Digital li-ion Uncategorized   Back abc Digital Catalog

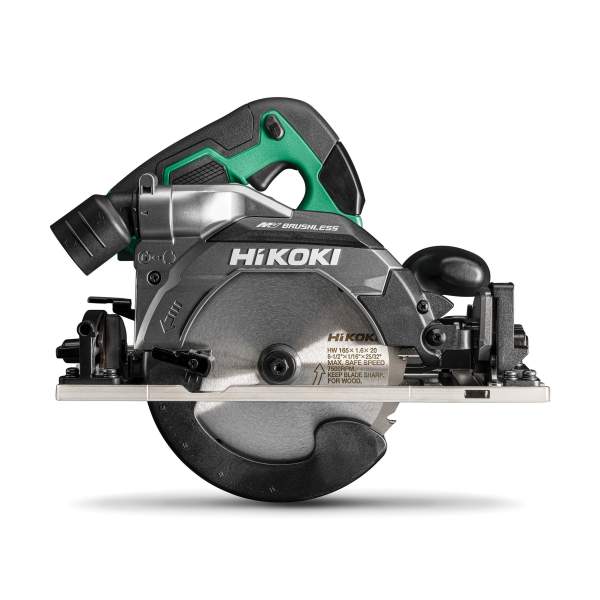

C3606DUM

MULTI VOLT(36V) Brushless 165mm Rail Saw C3606DUM Features Equipped with innovative Deep Cut Technology for 61 mm  cutting depth with guide rail and 66 mm without guide rail.   Baseplate that is compatible with guide rails from HiKOKI,  Festool, Makita, Bosch, Mafell, Milwaukee and Hilti.   Optimal saw blade visibility from both sides for high-precision cuts.   Fast stopping brake and kickback protection for high user safety. Very compact and lightweight for maximum flexibility.   Highest power and robustness for high demanding and tough jobs.   MULTI VOLT battery technology: AC power, DC freedom. Specifications Blade Diameter 165 mm Bore Ø 20 mm Max. Cut Depth 90º/45º 66mm / 43mm Bevel Capacity -5º / 45º Battery voltage 36V No load speed: – High mode: 5600/min – Medium mode: 4300/min – Silent mode: 2000/min Guide rail compatible Yes Dimensions (LxWxH) 314 x 198 x 263mm Weight 4.1kg with BSL36A18 C3606DUMW2ZBody onlySaw blade wood 165 mmhex bar wrenchrip fencestackable case HSC IVGTIN 4966376412273 PDF :  187KB Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Instruction Manual Technical Service & Support Global Network Instruction Manual Technical Service & Support BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US Digital Catalog All Posts Digital li-ion Uncategorized   Back abc Digital Catalog

additional product

MULTI VOLT(36V) Cordless Rotary Hammer DH3640DA * The stopper and wing bolt are not included as standard accessories in all regions and countries. Specifications and others Runtime per Charge Specifications New Low Vibration Mechanism and Low Vibration Handle 17% lower vibration than the current model* The new dynamic vibration absorber and low vibration handle significantly reduce vibrations for less user fatigue and improved operability.   Compared with HiKOKI DH36DMA. Lightweight and Class-leading Drilling and Demolishing performance*1 The lightest Rotary Hammer in its class (0.5 kg lighter than the current model*2) allows for increased maneuverability and less user fatigue.Delivers powerful impact energy of 9.2J*3 for 17% faster drilling speed and 35% higher demolishing performance than the current model*2.   As of July 1 2023, among 40mm class cordless rotary hammers made by leading power tool manufacturers. (Survey by Koki Holdings) Compared with HiKOKI DH36DMA. Impact energy according to EPTA-Procedure. Convenient Continuous Operation Function (only available for Hammering mode) Continuous operation button keeps the tool operating even after the trigger switch is released, for less fatigue when chiseling for extended periods. Continuous operation button Bright LED Light A high-brightness LED Illuminates the spot you are working on and turns off 10 seconds after releasing the trigger switch. Reactive Force Control Against Sudden Overburdening When the tool bit is suddenly overburdened during operation, the slip clutch works or the built-in controller stops the motor output before the entire tool jerks. Caution Depending on the operating conditions, the Reactive Force Control function may not work or provide the specified performance. Please make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation. 4-Step Push Button Rotation Speed Selection Four power levels of impact and rotation speed to match versatile applications and improve productivity. Display Lamp No Load Rotation Speed 250/min 340/min 420/min 500/min Full Load Impact Rate 1,400/min 1,900/min 2,350/min 2,800/min Performance per Charge* Work Ah Performance per Charge* Concrete Drilling(60mm in Depth) ⌀19mm Drill Bit 4.0AhMULTI VOLT Battery Approx. 46 Holes per Charge ⌀25mm Drill Bit Approx. 26 Holes per Charge ⌀32mm Drill Bit Approx. 15 Holes per Charge Concrete Demolishing Approx. 10.8 mins per Charge The values are shown for reference purposes and may vary according to materials and conditions. Specifications Capacity Drill Bit 40mm Core Bit 105mm Battery Voltage 36V Bit Shank SDS-max No Load Rotation Speed 250 – 500/min Full Load Impact Rate 1,400 – 2,800/min Impact Energy*1 9.2J Dimensions*2 (L x H x W) 499 x 262 x 107mm Weight*3,4 7.4kg Vibration Total Values(triax vector sum) *5 Hammer Drilling into Concrete Vibration emission value ah, HD = 10.3m/s2 Uncertainty K = 2.7m/s2 Equivalent Chiselling Value Vibration emission value ah, CHeq = 10.1m/s2 Uncertainty K = 2.3m/s2 Standard accessories*6 2 Batteries (BSL36B18X), Charger (UC18YSL3), Side Handle, 2 Battery Covers, Grease, Carrying Case Impact energy according to EPTA-Procedure. With BSL36B18X battery attached. Weight includes the side handle and BSL36B18X battery. According to EPTA-Procedure 01/2014. The vibration total values were determined according to EN62841. Standard accessories vary by country or area. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Instruction Manual Technical Service & Support Global Network Instruction Manual Technical Service & Support BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US Add Your Heading Text Here
