MULTI VOLT(36V) Cordless Disc Grinders
G3610DVE
- Available in APAC only.
Powerful Grinding with 1,500W Max Output and Excellent Dust Resistance Makes the Toughest Jobs Easier

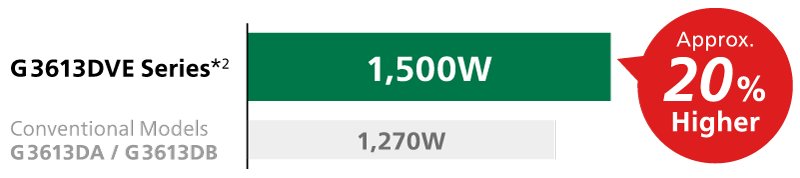

More Power and Higher Overload Capacity
The optimized motor control provides higher output power and higher overload capacity.
- The values shown are for reference purposes and may vary according to the workpiece materials and other operating conditions.
- G3610DVE / G3612DVE / G3613DVE / G3613DE / G3615DVE
- G3612DVE / G3613DVE / G3613DE / G3615DVE
2.5X More Dust Resistant*
Highly Durable Ball Bearings
The ball bearings are less exposed to dust, which lowers the risk of damage.
Dust and Water Resistant Switch
The switch is laser-welded for increased protection against dust and water.
- Vs.the G3610DA cordless grinder. The figure is for reference only.
Maintenance Free & High Efficiency Brushless Motor
Longer Lifetime
The brushless motor offers a significantly extended product life cycle by eliminating trouble including armature burnout, layer short or commutator wear even in severe work environments.
No Carbon Brush Replacement Required
There is no hassle and no cost of carbon brush replacement.
Designed for Maximum Ease of Use
‘Continue To Run’ Function*
Even after the motor has stopped due to overloading, it gets activated automatically if the load decreases within 1.5 seconds, so users do not have to restart the tool manually.
- The motor may not automatically restart when the kick-back protection is activated or for other safety reasons. In that case, the tool needs to be turned off and on manually.
Small Grip Circumference
The lightweight and compact body with a slim grip and small head offers easy handling and efficient operation.
- As of November 2022. Among cordless disc grinders made by leading power tool manufacturers. (Survey by Koki Holdings.)
Variable Speed Control with Auto Mode
Not applicable to G3613DE
Variable Speed: Variable speed control allows users to change the rotation speed between 3,200 and 10,000 RPM (G3615DVE: 3,200 – 8,000 RPM) to suit the application.
Auto Mode: The speed automatically shifts between 5,500 and 10,000 RPM (G3615DVE: 8,000RPM), depending on the load, which results in more effective operation.
Variable Speed Dial
Auto Mode Switch
Auto Mode turns on just by pressing its button.
Dial Settings and No Load Speeds
| Dial | No Load Speed (/min) | Use | |
|---|---|---|---|
| G3610DVE G3612DVE G3613DVE |
G3615DVE | ||
| 1 | 3,200 | 3,200 |  |
| 2 | 3,900 | 3,600 | |
| 3 | 5,300 | 4,600 | |
| 4 | 7,400 | 5,600 | |
| 5 | 8,600 | 7,200 | |
| 6 | 10,000 | 8,000 | |
| A Auto mode |
5,500 | 5,500 | Light Work, Standby State |
| 10,000 | 8,000 | Grinding, Cutting | |
Dual LEDs
Dual LEDs illuminate both sides of the wheel for better visibility.
3 Position Side Handle
The three-position side handle provides control in multiple positions. Fitting the side handle on top of the tool allows for easy operation in tight spaces.
Easy to Maintain Mesh Dust Filter
An easy to replace mesh filter provides additional protection from dust.
Great Safety Features
Kickback Protection System
Monitors a sudden drop in the motor rotation speed and stops the motor quickly to reduce the reaction force (kickback).
Caution
Depending on the operating conditions, the Reactive Force Control function may not work or provide the specified performance. Please make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation.
Drop Shut off Function
When the tool has been dropped, a shock sensor senses the impact and shuts off the motor to prevent accidents. (Not applicable to G3613DE)
Restart Protection
The motor does not restart after the power has been temporarily cut off during operation to avoid accidents.
Soft Start
Allows comfortable operation by reducing the reaction force on start up.
Electronic Brake
Stops the wheel within seconds when the trigger is released, so users can get back to work quickly without wasting time waiting around for the wheel to slow down.
Caution
Use only the wheel washer supplied.
Runtime per Charge*
| Work | Ah | Runtime per Charge | |
|---|---|---|---|
| Concrete Scoring | Using a 125mm diamond wheel, Work Material: Concrete, Cutting Depth: 20mm, Thrust Power: 30N |
2.5Ah | Approx. 7.4m |
| Grinding | Using a 125mm diamond wheel, Work Material: SS400, Thrust Power:30N |
2.5Ah | Approx. 7.4min |
- The values shown are for reference purposes and may vary according to the workpiece materials and other operating conditions.
Specifications
| Model | G3610DVE
|
G3612DVE | G3613DVE | G3613DE
|
G3615DVE | |
|---|---|---|---|---|---|---|
| Capacity | Wheel Dia. | 100mm | 115mm | 125mm | 150mm | |
| Hole Dia. | 16mm | 22.23mm | ||||
| Thickness | 6mm | |||||
| Spindle Thread | M10 x 1.5 | M14 x 2 | ||||
| Battery Voltage | 36V | |||||
| No Load Speed | AUTO Mode | 5,500/min | ||||
| Transmission Mode | 3,200 - 10,000/min | 10,000/min | 3,200 - 8,000/min | |||
| Overall Length | 375mm | 389mm | ||||
| Weight*1 | with BSL36A18 | 2.8kg | 3.1kg (with Guard Clip)(APAC) 3.1kg (Europe) |
3.0kg (APAC) 3.1kg (Europe) |
3.1kg | 3.1kg (APAC) 3.2kg (Europe) |
| with BSL36B18*2 | 3.0kg | 3.4kg (with Guard Clip)(APAC) 3.4kg (Europe) |
3.3kg (APAC) 3.4kg (Europe) |
3.4kg | 3.4kg (APAC) 3.5kg (Europe) |
|
| Standard Accessories*3 | 2 Batteries (BSL36A18), Charger (UC18YSL3), Side Handle, Wheel Guard, Depressed Center Wheel, Wrench, 2 Battery Covers, Carrying Case |
2 Batteries (BSL36A18), Charger (UC18YSL3), Side Handle, Wheel Guard, Depressed Center Wheel*4, Cutting Guard Clip, Wrench, 2 Battery Covers, Carrying Case |
2 Batteries (BSL36A18), Charger (UC18YSL3), Side Handle, Wheel Guard, Depressed Center Wheel*4, Cutting Guard Clip*5, Wrench, 2 Battery Covers, Carrying Case |
|||
- Weight according to EPTA-Procedure 01/2014.
- Sold separately.
- Standard accessories vary by country or area.
- Included only in APAC.
- Included only in Europe.
PDF :
1,743KB
- Please contact local dealers for product availability and product details.
