MULTI VOLT(36V) Cordless Reciprocating Saw
CR36DA
Electric (AC) Speed with Approx. 50% Less*1 Vibration
The CR36DA reciprocating saw is designed with the twin counterweight system which ensures a significant vibration reduction, and provides the maximum cutting efficiency using orbital action.
Less User Fatigue due to Minimum Pushing Force Required to Operate

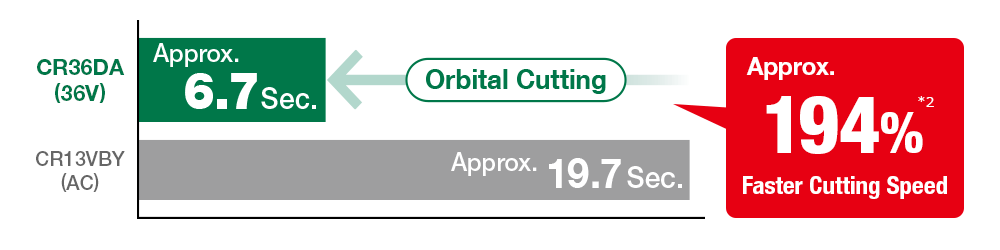

Wood Cutting Speeds without Pushing Force (self-weight only)
Note: Always firmly grip the handle and front grip while operating.
2 x 10 SPF, No.132 blade, Max. Transmission Mode (CR36DA), Dial5 (CR13VBY)

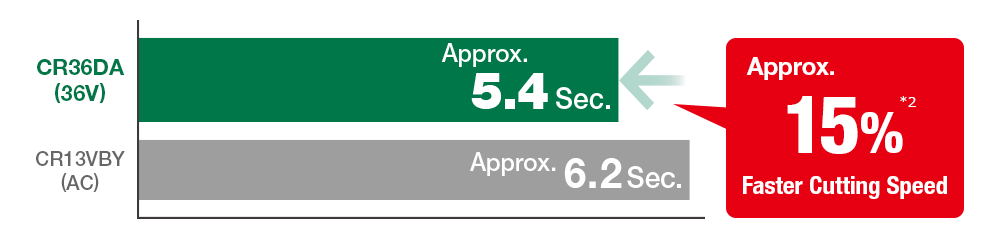

Wood Cutting Speeds with 49N (5kgf) Pushing Force
2 x 10 SPF, No.132 blade, Max. Transmission Mode (CR36DA), Dial5 (CR13VBY)

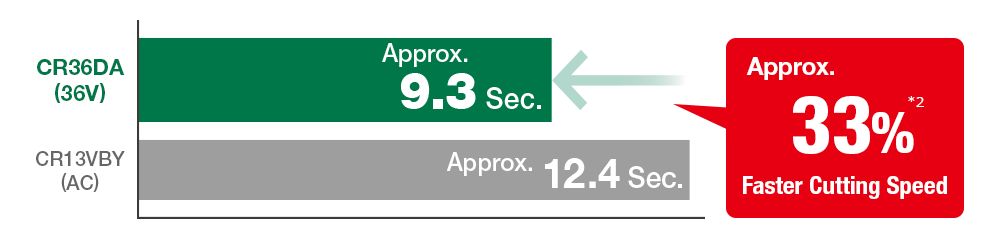

Steel Cutting Speeds with 49N (5kgf) Pushing Force
SGP40A (48.6mm OD x 3.5mm WT), No.141(S) blade, Medium Transmission Mode (CR36DA), Dial4 (CR13VBY)
- Vs. the CR18DBL cordless reciprocating saw. The value is shown for reference purposes and may vary according to the workpiece material and other operating conditions.
- This value is shown for reference purposes and may vary according to the workpiece material and other operating conditions.
Runtime per Charge*
Approx. 60 Cuts in Wood
2 x 10 SPF, Orbital Action, Max. Mode, 49N (5kgf) Pushing Force
Approx. 50 Cuts in Steel
SGP40A (48.6mm OD x 3.5mm WT), Straight Action, Medium Mode,
49N (5kgf) Pushing Force
- Values are shown for reference purposes and may vary according to the workpiece material and other operating conditions.

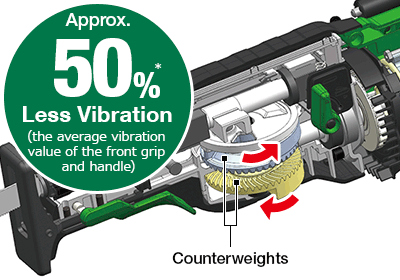

HiKOKI Twin Counterweight System
The upper and lower counterweight gears spin in the opposite directions to balance out inertia force, resulting in significant vibration reduction.
- Vs. the CR18DBL cordless reciprocating saw. The value is shown for reference purposes and may vary according to the workpiece material and other operating conditions.

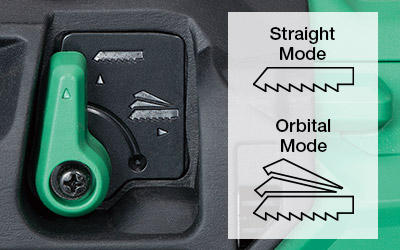

Orbital Action
The change lever switches between the straight mode and the orbital mode, maximizing the wood-cutting efficiency.
Durable Cylindrical Housing
The CR36DA is our first reciprocating saw with a cylindrical housing, providing a great improvement on durability.

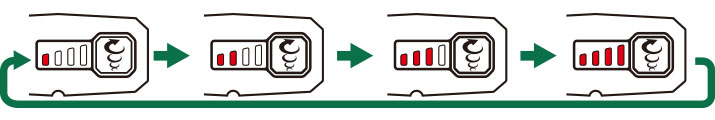

Four-mode Speed Control for a Wide Range of Applications
| Mode | Low | Medium | High | Max |
|---|---|---|---|---|
| Mode Indicator |
|
|||
| SPM | 0 - 1,700/min | 0 - 2,000/min | 0 - 2,500/min | 0 - 3,000/min |
| Applications | Stainless Steel Plastic Fiber Board |
Mild Steel Pipes Cast-iron Tubes L-shaped Angle Steel Aluminum Brass/Copper |
ALC (Autoclaved Lightweight Concrete) Plasterboard Wood |
|
The actual SPM values may vary according to the working conditions.
Tool-less Features

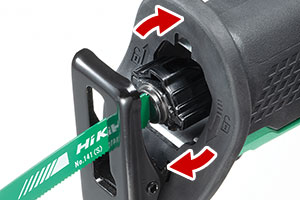

Tool-less Blade Change
Blade installation and removal can be done by a simple push of a lever.

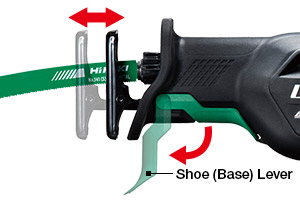

Tool-less Shoe Adjustment
The shoe (base) lever allows the shoe to be adjusted.
Other Features
- Large Pivoting Hook
- LED Light
Specifications
| Capacity | Mild Steel Pipe | 130mm (5") |
|---|---|---|
| Vinyl Chloride Pipe | 130mm (5") | |
| Wood | 300mm (11-13/16") | |
| Mild Steel Plate | 19mm (3/4") | |
| Battery Voltage | 36V | |
| Length of Stroke | 32mm (1-1/4") | |
| No Load Speed | 0-3,000/min | |
| Overall Length | 457mm (17-63/64") | |
| Weight | 4.5kg (9.9lbs.) with BSL36A18 battery 4.8kg (10.6lbs.) with BSL36B18 battery |
|
| Standard Accessories* | 2 Batteries (BSL36A18/BSL36B18), Charger (UC18YSL3), Blade (No.141(S)), Battery Cover, Carrying Case | |
- Standard Accessories vary by country or area.
PDF :
1,869KB
- Please contact local dealers for product availability and product details.
