DH18DPA

18V Cordless Rotary Hammer DH18DPA Specifications and others Runtime per Charge Specifications Optional Accessories Leaflet(PDF) Compact, Lightweight, and Well-balanced Users feel less fatigue due to the compact, lightweight and well-balanced design with most of the weight positioned close to the hand.   With BSL1850C Battery (inc. Side Handle) Class-Leading*1 Drilling Speed The DH18DPA is suited for drilling small holes into concrete, completing the job faster than corded counterparts.   Drilling Speed Comparison (approx.)*2Mean index values for drilling into concrete with drill bits between 3.5mm and 10mm in diameter   As of October 2020. Among cordless rotary hammers in the same class (18V DH18DPA [2-mode] : 12 – 18mm) made by leading power tool manufacturers. (Survey by Koki Holdings) The values are shown for reference purposes and may vary according to materials and conditions. Low Vibration Low Vibration Handle (LVH) The low vibration handle provides rubber handle dampers to absorb vibrations and shocks during operation. Vibration Value Comparison (approx.)*Triax Vector Sum (m/s2) The values are shown for reference purposes and may vary according to materials and conditions. Bright LED Light Illuminates the spot you are working on. 2-step Rotation Speed for Different Applications Makes it easy to drill a fragile material by pressing the changeover switch to reduce the rotation speed and impact rate. Built-in Auto Stop Function for Consistently Drilling Holes Once the initial drilling time is recorded on the tool, the motor is designed to automatically stop when the recorded time has passed, enabling a stable and efficient continuous operation. Caution The auto stop function is used to record the drilling time. Thus, it may not provide the same drilling depth owing to the operator position, pushing force, and variation among the workpieces. Please use a depth gauge to ensure the drilling depth. Reactive Force Control Against Sudden Overburdening When the tool bit is suddenly overburdened during operation, the slip clutch works or the built-in controller stops the motor output before the entire tool jerks. Caution Depending on the operating conditions, the Reactive Force Control function may not work or provide the specified performance. Please make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation. Runtime per Charge* Work Ah Runtime per Charge* Concrete Drilling (30mm in Depth) Φ 6mm Drill Bit 5.0Ah Approx. 246 Holes Φ 10.5mm Drill Bit 5.0Ah Approx. 138 Holes  The values are shown for reference purposes and may vary according to materials and conditions. Specifications Capacity Concrete 18mm Steel 13mm Wood 18mm Battery Voltage 18V Bit Shank SDS-plus Impact Energy*1 1.3J No Load Speed Normal 0 – 1,080/min Low 0 – 800/min Full Load Impact Rate Normal 0 – 5,500/min Low 0 – 4,100/min Overall Length 252mm Weight*2 2.1 – 2.7kg*32.3kg (with BSL1850C) Vibration Total Values (triax vector sum) *4 Hammer Drilling into Concrete Vibration emission value ah, HD = 9.9 m/s2 Uncertainty K = 1.5 m/s2 Standard Accessories *5 2 Batteries (BSL1850C), Charger (UC18YFSL), Side Handle, Depth Gauge, Battery Cover, Carrying Case Impact energy according to EPTA-Procedure 05 (Ver.2.0). Weight according to EPTA-Procedure 01/2014. Weight varies depending on the battery used. 2.7kg with BSL36B18 battery (sold separately). The vibration total values were determined according to EN60745. Standard accessories vary by country or area. Optional Accessories Belt Hook (Optional)   Users can hook the tool to their belt loop when it is not in use.Hook (Code No.372200)Screw (Code No.337357) PDF :  1,238KB Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

H3641DB

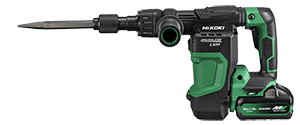

MULTI VOLT(36V) Cordless Demolition Hammer H3641DB Specifications and others Performance per Charge Specifications High Demolition Performance Equivalent to Current AC Products By utilizing the high output BSL36B18X battery, the MULTI VOLT H3641DB cordless demolition hammer can deliver high demolition performance comparable to that of current corded H41SA3. Compact and Lightweight Design for Optimal Control The H3641DB is compact and lightweight, with only 412mm in length (from top to handle) and 5.7kg* allowing for ease of use and less user fatigue, especially during continuous use applications.   Weight includes the side handle and BSL36B18X battery. Low Vibration Handle for Less Vibration and More User Comfort The model H3641DB features a low vibration handle comprises an upper unit with rubber dampers and a lower unit with a hinge and dampers to ensure a high vibration absorbing effect for added user comfort and less fatigue. Bright LED Light A high-brightness LED Illuminates the spot you are working on and turns off 10 seconds after releasing the trigger switch. Easy to Hold Resin cylinder case cover for better control in various applications. Idle Striking Prevention Mechanism The highly reliable idle striking prevention mechanism provides improved durability and operability. 4-Step Push Button Impact Rate Selection for Versatility Four power levels of impact rate from 1,500-2,880/min to match the application and improve productivity. Display Lamp Full Load Impact Rate 1,500/min 2,000/min 2,400/min 2,880/min Performance per Charge* Work Ah Performance per Charge* Concrete Demolishing 4.0AhMULTI VOLT Battery Approx. 14 mins per charge The values are shown for reference purposes and may vary according to materials and conditions. Specifications Bit Shank 17mm Hexagon Battery Voltage 36V Full Load Impact Rate 1,500 – 2,880/min Dimensions*1 (L x H x W) 448 x 248 x 95mm Weight*2,3 5.4 – 5.7kg (11.9 – 12.6lbs.) Standard accessories*4 2 Batteries (BSL36B18X), Charger (UC18YSL3), Side Handle, 2 Battery Covers, Bull point, Carrying Case With BSL36B18X battery attached. Weight includes a side handle and a battery. According to EPTA-Procedure 01/2014. Weights vary subject to the battery installed and the heaviest weight is measured with the BSL36B18X battery. Standard accessories vary by country or area. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US BEWARE OF NON-US SPECIFICATION PRODUCTS IN THE US Digital Catalog All Posts Digital li-ion Uncategorized   Back abc Digital Catalog
