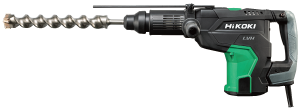

DH52MA

Rotary Hammers DH52MA Powerful Brushed Motor The powerful 1,400W (DH45MA) / 1,500W (DH52MA) motor delivers the power needed for heavy-duty applications Variable Speed Dial Allows for easy speed adjustment (Available on the 230V Europe models only) Low Vibration Handle The integrated vibration damper reduces vibration and fatigue Quick Bit Mounting A bit can be mounted by simply inserting it into the chuck Large Change Lever For easy and smooth mode switching Large Trigger Switch Easy to hold with less fatigue Specifications Model DH45MA DH52MA Capacity Drill Bit 45mm 52mm Core Bit 125mm 160mm Power Input 1,400W 1,500W Bit Shank SDS-max Impact Energy*1 11.3J 15.5J No Load Speed 110 – 240V 380/min 330/min 230V for Europe 260 – 380/min 210 – 330/min Full Load Impact Rate 110 – 240V 2,900/min 2,250/min 230V for Europe 1,750 – 2,900/min 1,200 – 2,250/min Overall Length 535mm 585mm Weight*2 9.4kg 11.8kg Vibration Total Values (triax vector sum)*3 Hammer Drilling into Concrete Vibration emission value ah, HD = 14.1m/s2 Uncertainty K = 1.5m/s2 Vibration emission value ah, HD = 15.1m/s2 Uncertainty K = 1.5m/s2 Equivalent Chiseling Value Vibration emission value ah, CHeq = 10.8m/s2 Uncertainty K = 1.5m/s2 Vibration emission value ah, CHeq = 10.8m/s2 Uncertainty K = 1.5m/s2 Standard Accessories*4 Side Handle, Stopper, Hammer Grease A, Carrying Case Impact energy according to EPTA-Procedure 05 (Ver.2.0). Weight according to EPTA-Procedure 01/2014. (with side handle, without cord) The vibration total values were determined according to EN62841-2-6. Standard accessories vary by country or area. PDF :  1,577KB Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

DH45MA

Rotary Hammers DH45MA Powerful Brushed Motor The powerful 1,400W (DH45MA) / 1,500W (DH52MA) motor delivers the power needed for heavy-duty applications Variable Speed Dial Allows for easy speed adjustment (Available on the 230V Europe models only) Low Vibration Handle The integrated vibration damper reduces vibration and fatigue Quick Bit Mounting A bit can be mounted by simply inserting it into the chuck Large Change Lever For easy and smooth mode switching Large Trigger Switch Easy to hold with less fatigue Specifications Model DH45MA DH52MA Capacity Drill Bit 45mm 52mm Core Bit 125mm 160mm Power Input 1,400W 1,500W Bit Shank SDS-max Impact Energy*1 11.3J 15.5J No Load Speed 110 – 240V 380/min 330/min 230V for Europe 260 – 380/min 210 – 330/min Full Load Impact Rate 110 – 240V 2,900/min 2,250/min 230V for Europe 1,750 – 2,900/min 1,200 – 2,250/min Overall Length 535mm 585mm Weight*2 9.4kg 11.8kg Vibration Total Values (triax vector sum)*3 Hammer Drilling into Concrete Vibration emission value ah, HD = 14.1m/s2 Uncertainty K = 1.5m/s2 Vibration emission value ah, HD = 15.1m/s2 Uncertainty K = 1.5m/s2 Equivalent Chiseling Value Vibration emission value ah, CHeq = 10.8m/s2 Uncertainty K = 1.5m/s2 Vibration emission value ah, CHeq = 10.8m/s2 Uncertainty K = 1.5m/s2 Standard Accessories*4 Side Handle, Stopper, Hammer Grease A, Carrying Case Impact energy according to EPTA-Procedure 05 (Ver.2.0). Weight according to EPTA-Procedure 01/2014. (with side handle, without cord) The vibration total values were determined according to EN62841-2-6. Standard accessories vary by country or area. PDF :  1,577KB Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

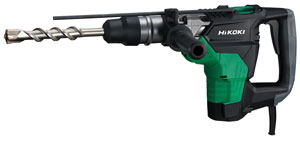

DH40MC

40mm (1-9/16″) Rotary Hammer DH40MC High Performance Approx. 13% Faster Drilling Speed*1Approx. 28% More Demolition Performance*2   A comparison between the DH40MC and previous model DH40MR. (When drilling ø16-40mm holes into concrete. Actual results vary depending onconditions.) A comparison between the DH40MC and previous model DH40MR. (Actualresults vary depending on conditions.) Superior Working Comfort A larger damper and higher volume air cushion reduce the impact and piston reaction force generated during hammering. This results insignificant vibration reduction. *A comparison between the DH40MC and previous model DH40MR. (Actual results vary depending on conditions.) One Push Bit Mounting It only takes one action instead of conventionally-required two to mount a drill bit. All that needs to be done is insert the drill bit into the tool holder while turning it. Large Change Lever Large change lever located on top of the tool for easy visibility allows smooth mode changing.– Hammering (for demolition)– Neutral (for bit angle adjustment)– Rotation + Hammering (for drilling) Multiple Bit-Angle Settings The chisel can be rotated at 12 different angles with the change lever positioned at ‘neutral’. Large Trigger Switch Large trigger switch is easy to grip and fit the hand for more control with lessfatigue. Specifications Capacity Drill Bit 40mm (1-9/16″) Core Bit 105mm (4-1/8″) Power Input 1,100W Bit Shank SDS max No Load Speed 620/min. Full Load Impact Rate 2,800/min. Overall Length 448mm (17-5/8″) Weight (including side handle) 7.1kg (15.6lbs.) Vibration Total Values(triax vector sum)* Hammer drilling into concrete Vibration emission value : ah, HD = 16.5m/s2Uncertainty K = 1.5 m/s2 Equivalent chiselling value Vibration emission value : ah, CHeq = 13.3m/s2Uncertainty K = 1.5m/s2 Standard Accessories Side Handle, Stopper, Hammer Grease A (30g), Carrying Case Vibration total values (triax vector sum) determined according to EN60745. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

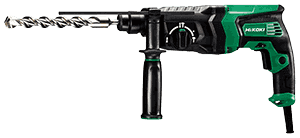

DH26PC2

26mm Rotary Hammers DH26PC2 * The stopper and wing bolt are not included as standard accessories in all regions and countries. Specifications and others Specifications Leaflet(PDF) Highest Drilling Speed in its Class* As of July 2019. Among 26mm rotary hammers made by leading power tool manufacturers. (Survey by Koki Holdings) Compact Body The shortened overall length results in better handling.   Vs. the existing model DH26PC/PB. Large Change Lever Located on the side of the tool body for easy operation Rotation onlyFor drilling in steel and wood etc.(with optional drill chuck and chuck adapter) Rotation & HammeringFor drilling into concrete etc. Hammering only (DH26PC2 only)For chiselling of concrete and groove digging etc. Angle Adjustment Function (DH26PC2 only) When using a cold chisel or cutter, the angle of the tool tip can be adjusted by setting the change lever as shown on the left. Labyrinth Ventilation Windows for reducing the ingress of dust and debris into the t New Construction for Motor Protection Double ventilation windows (inlets) in labyrinth construction does less harm to the motor by reducing the ingress of dust and debris into the tool. Elastomer-covered Side Handle Soft and easy to grip One-push Bit Mounting Easy to insert a bit Specifications Model DH26PC2 DH26PB2 Capacity Concrete 26mm Steel 13mm Wood 32mm Core Bit 50mm Power Input 830W Bit Shank SDS-plus No Load Speed 0 – 1,100/min Full Load Impact Rate 0 – 4,300/min Overall Length 349mm Weight*1 2.8kg Vibration Total Values (triax vector sum) *2 Hammer drilling into concrete Vibration emission value ah, HD = 14.3m/s2 Uncertainty K = 1.5m/s2 Equivalent chiselling value Vibration emission value ah, CHeq = 11.3m/s2 Uncertainty K = 1.5m/s2 – Standard Accessories*3 Side Handle, Depth Gauge, Carrying Case Weight according to EPTA-Procedure 01/2003 (incl. the side handle but excl. a cord). The vibration total values were determined according to EN60745. Standard accessories vary by country or area. PDF :  1,236KB Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog
