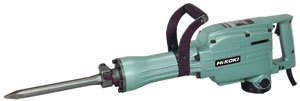

PH-65A

Demolition Hammer PH-65A Features For 30mm(1-3/16″) hexagon bit shank Power input 1,240W Heavy blow chipping mechanism Durable tool retainer Adjustable side handle Specifications Power Input 1,240W Full Load Impact Rate 1,400/min.. Bit Shank 30mm (1-3/16″) Hexagon Overall Length 642mm (25″) Weight 15.0kg (33.0 lbs.) Standard Accessories Bull Point, Side Handle, Wrenches, Oil Feeder, Carrying Case Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

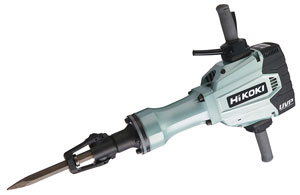

H90SG

Demolition Hammer H90SG Best in class*1 Demolition Performance User Vibration Protection An optimized hammering mechanism, shock-absorbing construction and vibration-absorbing handles. Optimized Hammering Mechanism Secures sufficient air cushion and improves hammering movement, decreasing piston reaction force generated during hammering. And vibrations are significantly reduced by making the piston and other parts lighter. Shock-absorbing Construction Front dampers (A) and (B) on the front cover mount reduce vibration from an accessory tool. Vibration-absorbing Handles Reduces vibration from the main unit by means of four handle dampers bent by the rotating holder(A). High Durability Internal double-insulation construction with a very sturdy aluminum die-cast body and a plastic internal stator holder Makes the housing more rigid, significantly enhancing durability of the motor unit. Improved Handling Soft grip handles for more comfort Double-layered handles with hard and soft plastics offer more comfortable grip and improved handling. Large switch lever for more control Reduces operator fatigue even for long operation periods. Specifications Power Input 110V : 1,560W, 1,670W 120V, 127V : 1,800W220V, 230V, 240V : 2,000W Full Load Impact Rate 1,000/min Overall Length 860mm (33-55/64”) Weight 32.0kg (70.5 lbs.) without code Tri-axial Vibration Value Chiselling : Vibration emission value ah, Cheq= 7.7m/s2 Uncertainty K =1.5m/s2 Standard Accessories Hex. Bar Wrench Optional Accessories L (mm) Code No. Shank Type Bull Point 410(16-9/64”) 996372 Hexagon 520(20-15/32”) 985230 Cold Chisel 520(20-15/32”) 985231 Cutter 520(20-15/32”) 985232 Scoop 546(21-1/2”) 985233 Rammer – 305880 – Shank 395(15-35/64”) 308092 Hexagon As of July 2014. Among 30kg class demolition hammers made by leading power tool manufacturers (surveyed by Koki Holdings.) In comparison with the model H90SE. The demolished amounts for 30 min. are for reference only. They may vary according to demolished materials and other conditions. The tri-axial vibration value was measured according to EN60745-2-6. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

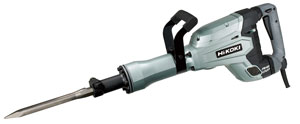

H65SB3

Demolition Hammers H65SB3 Best in class*1 Demolition Performance Higher demolition performance The optimized hammer mechanism with a cylindrical striker delivers a high impact energy and efficient impact rate, resulting in higher demolition performance. As of October 2016. Among 16-18kg(H65SB3)/18-20kg(H65SD3) demolition hammers made by leading power tool manufacturers.(Surveyed by Koki Holdings) Compared to the previous model H65SB2/H65SD2. Actual performance results will vary depending on operational conditions. Superior Working Comfort Due to the large heavyweight (cylindrical) striker, the chisel easily cuts intoconcrete, which makes users feel more comfortable during demolition work. User Vibration Protection The user vibration protection (UVP) system reduces vibration to a tri-axial vibration value of 15.5m/s2(H65SB3) and 13.9m/s2(H65SD3) by combining the following vibration control features. Optimized Hammering Mechanism Secures sufficient air cushion and improves hammering movement, decreasing piston reaction force generated during hammering. This results in significantvibration reduction. Shock-absorbing Construction (H65SB3 only) Two front dampers on the front cover mount reduce vibration from an accessory tool. Low Vibration Handle Our original low vibration handle, which consists of the upper unit with spring and weight and the lower unit with hinge, reduces vibration and user fatigue,allowing for extended usage. High Durability Internal Double-Insulation Construction with a Very Sturdy Aluminium Die-Cast Body and a Plastic Internal Stator Holder Makes the housing more rigid, significantly enhancing durability of the motor unit. Improved Handling Lock-On Button Lock-on button allows continuous operation without holding the switch lever. It is positioned at a little distance from the switch lever in order to prevent interruptions caused by accidental contact with the button during continuous operation. Large Switch Lever Large, easy to grip switch lever is ideal for intermittent operation where the tool is switched on and off repeatedly. Soft Grip Handle that Fits Comfortably in the Hand Double-layered handles with hard and soft plastics offer more comfortable grip and improved handling. 360°Rotating Side Handle with Comfortable Soft Grip The side handle is fitted with an elastomer grip that reduces transmission of vibration to the hand for less user fatigue. Universal Tool Retainer (H65SD3 only) Accepts 3 types of 28.5mm (1-1/8”) hex shank bits: standard hex, collarless retaining groove and air tool bits Specifications Model H65SB3 H65SD3 Power Input 1,340W Full Load Impact Rate 1,400/min Bit Shank 30mm Hex.(1-3/16″) 28.5mm Hex.(1-1/8”) Overall Length 731mm (28-3/4”) 848mm (33-3/8”) Weight*1 18.0kg (39.7lbs.) 20.1kg (44.3lbs.) Vibration Total Values(triax vector sum)*2 Chiseling Vibration emission value ah, Cheq = 15.5m/s2 Vibration emission value ah, Cheq = 13.9m/s2 Uncertainty K = 1.5m/s2 Standard Accessories Bull Point, Carrying Case Carrying Case Carrying Case with Casters Weight according to EPTA-Procedure 01/2003. The vibration total values were determined according to EN60745. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

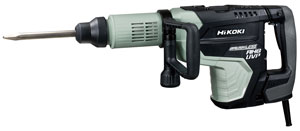

H60MEY

Demolition Hammer H60MEY Our Original Brushless Motor Technology ► No wearing parts (carbon brushes, commutator, field coil)► Our original compact controller Long Lifetime, Maintenance-Free The brushless motor offers a significantly extended product life cycle by eliminating trouble including armature burnout, layer short or commutator wear even in severe work environments. Besides, no carbon brush replacement is required. Compact, Lightweight Compatible with Engine Generators Equipped with Our original, compact high efficiency inverter circuit, the demolition hammer works with an engine generator that doesn’t have an on-board inverter. Stable Performance during Voltage Drops The brushless motor runs cooler, and its performance isn’t affected as much by voltage drop from long extension cords onsite. This vastly improves electrical efficiency. Best in class*1 demolition performance The highly efficient AC brushless motor provides stable performance during voltage drops, delivering the best in class performance with an extension cord, up to 1.2 x more*2 compared to our previous model. As of August 2016. Among 9-11kg class demolition hammers made by leading power tool manufacturers.(Surveyed by Koki Holdings.) A performance comparison between the H60ME/H60MEY and the previous model H60MRV when using a 2.0mm2x30m extension cord. Actual performance results may vary according to operational conditions. Industry Leading Low Vibration* Our original, pendulum dynamic vibration absorber (on the H60MEY only) Reduces the vibration from demolition by moving a weight and leaf spring in the opposite direction to the movement of the hammer.   The UVP system includes the LVH mechanism Low vibration handle (on both the H60ME and H60MEY) Our original vibration-absorbing mechanism with the Transatory unit (rubber dampers) and the hinge unit provides high vibration absorbing effect. This will help absorb and reduce vibrations to the user, making it more comfortable for prolonged periods of time. High Durability The internal double-insulation construction with a very sturdy aluminium die-cast body and a plastic internal stator holder Makes the housing more rigid, significantly enhancing durability of the motor unit. Improved Handling Push-button, constant speed control with variable speed 1. Push-button, constant speed control with variable speedThe built-in electronic control circuit adjusts the impact rate according to applications, and the four-step impact rates can be selected by the impact rate selector switch. Display Lamp Full Load Impact Rate 1,500/min 1,700/min 1,900/min 2,100/min 2. Power Lamplights up when the plug is inserted into an outlet. One push action for quick bit mounting A bit can be mounted by simply inserting it into the tool holder Tool bit angle adjustment The change lever allows for easy mode switching between neutral (for bit angle adjustment) and hammering (for demolition). The tool bit angle can be adjusted to 12 different angles every 30 degrees by turning the grip. Large trigger switch Large easy-to-grip trigger switch for more control. Specifications Model H60ME H60MEY Power Input 1,500W Full Load Impact Rate 1,500-2,100/min Bit Shank SDS max Overall Length 585mm (23-1/32”) Weight*1 11.6kg (25.6lbs.) 12.2kg (26.9lbs.) Vibration Total Values(triax vector sum)*2 EquivalentChiselingValue Vibration emission value ah, CHeq = 15.0m/s2 Vibration emission value ah, CHeq = 11.0m/s2 Uncertainty K = 1.5m/s2 Standard Accessories Bull Point, Side Handle, Carrying Case Weight according to EPTA-Procedure 01/2003. The vibration total values were determined according to EN60745. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

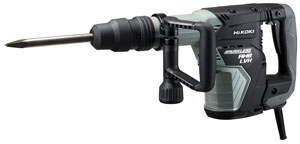

H45MEY

Demolition Hammer H45MEY Our Original Brushless Motor Technology ► No wearing parts (carbon brushes, commutator, field coil)► Our original compact controller Long Lifetime, Maintenance-Free The brushless motor offers a significantly extended product life cycle by eliminating trouble including armature burnout, layer short or commutator wear even in severe work environments. Besides, no carbon brush replacement is required. Compact, Lightweight Compatible with Engine Generators Equipped with Our original, compact high efficiency inverter circuit, the demolition hammer works with an engine generator that doesn’t have an on-board inverter. Stable Performance during Voltage Drops The brushless motor runs cooler, and its performance isn’t affected as much by voltage drop from long extension cords onsite. This vastly improves electrical efficiency. Industry Leading Low Vibration* Our original, spring-type dynamic vibration absorber (on the H45MEY only) Our original, spring-type dynamic vibration absorber with a weight and two springs move in the opposite direction to the vibration direction of the main body. This results in reduced vibration and improved operating efficiency. Low vibration handle (on both the H45ME and H45MEY) Our original vibration-absorbing mechanism with the Transatory unit (rubber dampers) and the hinge unit provides high vibration absorbing effect. This will help absorb and reduce vibrations to the user, making it more comfortable for prolonged periods of time.   The UVP system includes the LVH mechanism. High Durability The internal double-insulation construction with a very sturdy aluminium die-cast body and a plastic internal stator holder Makes the housing more rigid, significantly enhancing durability of the motor unit. Improved Handling Push-button, constant speed control with variable speed 1. Push-button, constant speed control with variable speed The built-in electronic control circuit adjusts the impact rate according to applications, and the four-step impact rates can be selected by the impact rate selector switch. Display Lamp Full Load Impact Rate 1,430/min 1,900/min 2,370/min 2,850/min 2. Power Lamplights up when the plug is inserted into an outlet. One push action for quick bit mounting A bit can be mounted by simply inserting it into the tool holder Tool bit angle adjustment The tool bit angle can be easily adjusted to 12 different angles every 30 degrees by turning the grip. Large trigger switch Large easy-to-grip trigger switch for more control. Specifications Model H45ME H45MEY Power Input 1,150W Full Load Impact Rate 1,430 – 2,850/min Bit Shank SDS max Overall Length 480mm(18-29/32”) Weight*1 7.0kg(15.4lbs.) 7.3kg(16.1lbs.) Vibration Total Values(triax vector sum)*2 Chiseling Vibration emission value ah, CHeq = 11.0m/s2 Vibration emission value ah, CHeq = 8.0m/s2 Uncertainty K = 1.5m/s2 Standard Accessories Bull Point, Side Handle, Carrying Case Weight according to EPTA-Procedure 01/2003. The vibration total values were determined according to EN60745. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

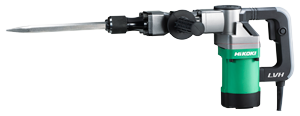

H41SST

Demolition Hammer H41SST Features 1,010W high power input Low vibration handle (LVH) for less user fatigue Soft-grip side handle Specifications Power Input 1,010W Full Load Impact Rate 2,900/min. Bit Shank 17mm (21/32″) Hexagon Overall Length 458mm (18-1/32″) Weight 5.7kg (12.6lbs.) with side handle, without cord6.0kg (13.2lbs.) with cord & side handle Standard Accessories Bull Point, Flat Chisel, Side Handle, Wrench, Grease, Carrying Case PDF :  218KB Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

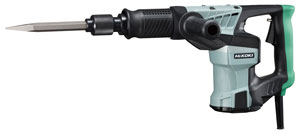

H41SD

Demolition Hammer H41SD Features For 17mm (21/32″) hexagon bit shank Power input 1,050W Plastic-covered front grip for comfortable holding Side handle with rubber grip Easy-to-use slide type retainer Functional and robust design Specifications Power Input 1,050W Full Load Impact Rate 3,000/min. Bit Shank 17mm (21/32″) Hexagon Overall Length 460mm (18-1/8″) Weight 5.0kg (11.0lbs.) Standard Accessories Side Handle, Bull Point, Carrying Case Note: Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

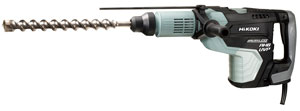

DH52MEY

52mm (2-1/16″) Rotary Hammers DH52MEY AC Brushless Motor Maintenance-free The product life cycle is significantly extended by eliminating troubles with armature burnout, layer short and commutator wear. Besides, no carbon brush replacement is required. Fastest drilling speed and highest demolition performance in its class even at voltage drop The efficient brushless motor offers higher drilling performance even with an extension cord used.   Compatible with engine generators Designed to be powered by engine generators as well, thanks to Our original compact and high efficiency inverter circuit. Fastest drilling speed and highest demolition performance in its class Fastest*1 drilling speed and highest*1 demolition performance in its class The high efficiency brushless motor and the optimized hammering mechanism achieve the fastest drilling speed*1 and the highest demolition performance*1 in its class.   As of March 2015. Among 52mm class rotary hammers made by leading power tool manufacturers, surveyed by Koki Holdings. A comparison of the model DH52MEY and the previous model DH50MRY. Mean value for drilling into concrete with drill bits between 16mm and 52mm diameters. The results may vary depending on operating conditions. A comparison of the model DH52MEY and the previous model DH50MRY. The results may vary depending on operating conditions. Reduced vibration and improved operating efficiency Our original, pendulum dynamic vibration absorber (Only for DH52MEY) Reduces the vibration from concrete drilling or chiseling by moving a weight and a leaf spring in the opposite direction to the movement of the hammer. A comparison of the model DH52MEY and the previous model DH50MRY. The results may vary depending on operating conditions. Vibration-absorbing handle Provides high vibration-absorbing effect by employing both transatory and hinge units. High durability The internal double-insulation construction with a very sturdy aluminium die-cast body and a plastic internal stator holder Makes the housing more rigid, significantly enhancing durability of the motor unit. Improved handling Control panel 1. Push-button, constant speed control with variable speedDue to the built-in electronic control circuit that can adjust the impact rate according to applications, four-step impact rates can be selected by the rotation speed selector switch. Display Lamp No Load Speed 110V120V127V 110/min 160/min 210/min 260/min 220V230V240V 110/min 160/min 220/min 280/min Full Load Impact Rate 110V120V127V 1,000/min 1,400/min 1,800/min 2,200/min 220V230V240V 1,000/min 1,400/min 1,900/min 2,400/min 2. Power Lamplights up when the plug is inserted into an outlet. One push action for quick bit mounting A bit can be mounted by simply inserting it into the tool holder. Large change lever An up-sized mode change lever is located on the top of the tool body for easier handling. Large trigger switch Upsized, easy-to-grip trigger switch for more control. Continuous operation function (available for the Hammering Mode) Keeps the tools running even after the trigger switch is released, making chiseling easier. Specifications Model DH52ME DH52MEY Capacity Drill bit: 52mm (2-1/16″)Core bit: 160mm (6-1/4″) Power Input 1,500W Bit Shank SDS max No Load Speed 110V, 120V, 127V: 110 – 260/min220V, 230V, 240V: 110 – 280/min Full Load Impact Rate 110V, 120V, 127V: 1,000 – 2,200/min220V, 230V, 240V: 1,000 – 2,400/min Overall Length 585mm (23-1/32″) Weight (including side-handle) 11.0kg (24.2lbs.) 11.5kg (25.3lbs.) Vibration Total Values(triax vector sum)* Hammer drilling into concrete Vibration emission value : ah, HD = 14.0m/s2Uncertainty K = 1.5 m/s2 Vibration emission value : ah, HD = 9.8m/s2Uncertainty K = 1.5 m/s2 Equivalent chiselling value Vibration emission value : ah, CHeq = 15.5m/s2Uncertainty K = 1.5m/s2 Vibration emission value : ah, CHeq = 9.7m/s2Uncertainty K = 1.5m/s2 Standard Accessories Side Handle, Stopper, Rotary Hammer Grease A, Carrying Case The tri-axial vibration values were measured according to EN60745-2-6. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

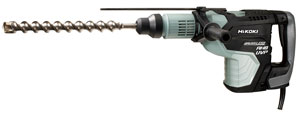

DH45MEY

45mm (1-3/4″) Rotary Hammers DH45MEY AC Brushless Motor Maintenance-free The product life cycle is significantly extended by eliminating troubles with armature burnout, layer short and commutator wear. Besides, no carbon brush replacement is required. Fastest drilling speed and highest demolition performance in its class even at voltage drop The efficient brushless motor offers higher drilling performance even with an extension cord used.   Compatible with engine generators Designed to be powered by engine generators as well, thanks to Our original compact and high efficiency inverter circuit. Fastest drilling speed and highest demolition performance in its class Fastest* drilling speed and highest* demolition performance in its class The high efficiency brushless motor and the optimized hammering mechanism achieve the fastest drilling speed* and the highest demolition performance* in its class. As of March 2015. Among 45mm class rotary hammers made by leading power tool manufacturers, surveyed by Koki Holdings. Reduced vibration and improved operating efficiency Our original, pendulum dynamic vibration absorber (Only for DH45MEY) Reduces the vibration from concrete drilling or chiseling by moving a weight and a leaf spring in the opposite direction to the movement of the hammer. Vibration-absorbing handle Provides high vibration-absorbing effect by employing both transatory and hinge units. High durability The internal double-insulation construction with a very sturdy aluminium die-cast body and a plastic internal stator holder Makes the housing more rigid, significantly enhancing durability of the motor unit. Improved handling Control panel 1. Push-button, constant speed control with variable speedDue to the built-in electronic control circuit that can adjust the impact rate according to applications, four-step impact rates can be selected by the rotation speed selector switch. Display Lamp No Load Speed 110V120V127V 120/min 170/min 220/min 270/min 220V230V240V 120/min 180/min 240/min 310/min Full Load Impact Rate 110V120V127V 1,200/min 1,600/min 2,100/min 2,500/min 220V230V240V 1,200/min 1,700/min 2,300/min 2,950/min 2. Power Lamplights up when the plug is inserted into an outlet. One push action for quick bit mounting A bit can be mounted by simply inserting it into the tool holder. Large change lever An up-sized mode change lever is located on the top of the tool body for easier handling. Large trigger switch Upsized, easy-to-grip trigger switch for more control. Continuous operation function (available for the Hammering Mode) Keeps the tools running even after the trigger switch is released, making chiseling easier. Specifications Model DH45ME DH45MEY Capacity Drill bit: 45mm (1-3/4″)Core bit: 125mm (4-29/32″) Power Input 1,500W Bit Shank SDS max No Load Speed 110V, 120V, 127V: 120 – 270/min220V, 230V, 240V: 120 – 310/min Full Load Impact Rate 110V, 120V, 127V: 1,200 – 2,500/min220V, 230V, 240V: 1,200 – 2,950/min Overall Length 535mm (21-1/16″) Weight (including side-handle) 9.0kg (19.8lbs.) 9.5kg (20.9lbs.) Vibration Total Values(triax vector sum)* Hammer drilling into concrete Vibration emission value : ah, HD = 13.5m/s2Uncertainty K = 1.5 m/s2 Vibration emission value : ah, HD = 8.8m/s2Uncertainty K = 1.5 m/s2 Equivalent chiselling value Vibration emission value : ah, CHeq = 14.2m/s2Uncertainty K = 1.5m/s2 Vibration emission value : ah, CHeq = 9.2m/s2Uncertainty K = 1.5m/s2 Standard Accessories Side Handle, Stopper, Rotary Hammer Grease A, Carrying Case  The tri-axial vibration values were measured according to EN60745-2-6. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog

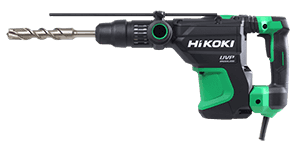

DH40MEY2

Rotary Hammer DH40MEY2 * The stopper and wing bolt are not included as standard accessories in all regions and countries. Lightweight and Outstanding Drilling and Demolishing performance Its lightweight design (0.7 kg lighter than the current model*1) allows for increased maneuverability and less user fatigue.The high-efficiency brushless motor delivers speedy drilling and the highest demolishing performance in its classs*2.   Compared with HiKOKI DH40MEY. As of July 1, 2023, among 40mm class corded rotary hammers made by leading power tool manufacturers. (Survey by Koki Holdings) New Low Vibration Mechanism and Low Vibration Handle 13% lower vibration than the current model* The new dynamic vibration absorber and low vibration handle significantly reduce vibrations for less user fatigue and improved operability.   Compared with HiKOKI DH40MEY. Convenient Continuous Operation Function (only available for Hammering mode) Continuous operation button keeps the tool operating even after the trigger switch is released, for less fatigue when chiseling for extended periods. Continuous operation button Reactive Force Control Against Sudden Overburdening When the tool bit is suddenly overburdened during operation, the slip clutch works or the built-in controller stops the motor output before the entire tool jerks. Caution Depending on the operating conditions, the Reactive Force Control function may not work or provide the specified performance. Please make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation. 4-Step Push Button Rotation Speed Selection Four power levels of impact and rotation speed to match versatile applications and improve productivity. Display Lamp No Load Rotation Speed 250/min 340/min 420/min 500/min Full Load Impact Rate 1,400/min 1,900/min 2,350/min 2,800/min Specifications Capacity Drill Bit 40mm Core Bit 105mm Bit Shank SDS-max No Load Rotation Speed 250 – 500/min Full Load Impact Rate 1,400 – 2,800/min Type of Motor Brushless motor Power Input 1,150W Impact Energy*1 9.2J Dimensions (L x H x W) 471 x 252 x 107mm Weight*2,3 6.8kg Vibration Total Values(triax vector sum) *4 Hammer Drilling into Concrete Vibration emission value ah, HD = 10.9m/s2 Uncertainty K = 1.5m/s2 Equivalent Chiselling Value Vibration emission value ah, CHeq = 10.6m/s2 Uncertainty K = 1.5m/s2 Standard accessories*5 Side Handle, Grease, Carrying Case Impact energy according to EPTA-Procedure. Weight includes the side handle and excludes the cord. According to EPTA-Procedure 01/2014. The vibration total values were determined according to EN62841 Standard accessories vary by country or area. Please contact local dealers for product availability and product details. New Products Li-ion Cordless Tools Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Brushless Motor Tools DC (cordless) AC (corded) DC (cordless) AC (corded) Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous Screw-driving / Drilling Hammer-drilling Screw-driving Fastening Grinding Sanding Cutting Sawing Planing / Routing Cleaning Nailing Landscaping Miscellaneous DC (cordless) AC (corded) DC (cordless) AC (corded) Drilling Demolishing Drilling Demolishing Global Network Technical Service & Support Global Network Technical Service & Support Digital Catalog All Posts Digital li-ion   Back abc Digital Catalog
